Computer-aided manufacturing (CAM) is the process of creating products using machine tools under the control of computer software. The tool paths that the machine tool must travel to construct a product are generated by CAM software using the 3D model of the product created by CAD software. A vast range of items, including components for vehicles, aircraft, and medical equipment, can be produced using CAM.
Introduction
Computer-aided manufacturing (CAM) is the process of creating products using machine tools under the control of computer software. The tool paths that the machine tool must travel to construct a product are generated by CAM software using the 3D model of the product created by CAD software. A vast range of items, including components for vehicles, aircraft, and medical equipment, can be produced using CAM.
CAM software typically includes the following features:
- Tool path generation: This is the process of calculating the precise movements of the machine tool required to create the product.
- Simulation: This allows the user to see how the tool paths will actually work before they are executed on the machine tool.
- Optimization: This can be used to improve the efficiency of the tool paths, such as by reducing the amount of material waste.
- Post-processing: This converts the tool paths into a format that can be understood by the machine tool.
Role of CAM in Manufacturing Processes and Automation
- Tool path generation: To produce the exact movements of the machine tool needed to make a product, CAM software is employed. This can be a challenging procedure because the software needs to account for the product’s shape, the material being machined, and the machine tool’s capabilities.
- Simulation: Using CAM software, the production process can be practiced in advance. By doing so, the user may preview how the tool paths will function and spot any potential issues.
- Optimization: CAM software can be used to improve the precision of the machining or reduce material waste in order to optimize the tool paths.
- Post-processing: Using CAM software, the tool trajectories can be transformed into a
Manufacturing Process

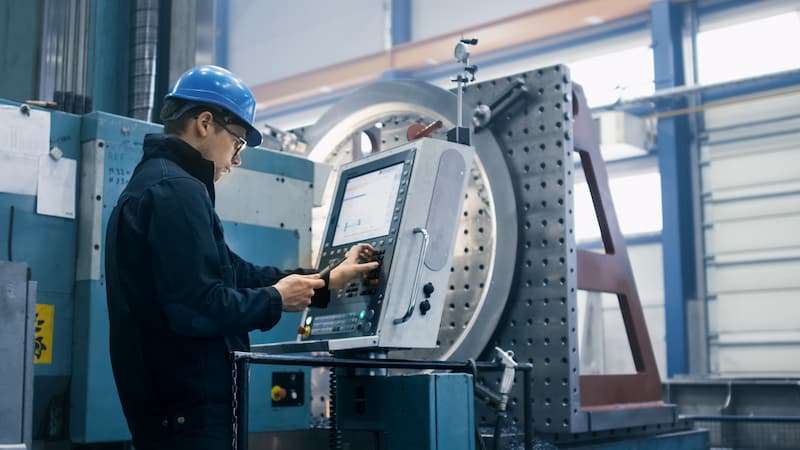

- CNC machining: CNC machining is a technique for producing items out of metal, plastic, or other materials using machine tools that are controlled by computers. To create the tool paths for CNC machines, CAM software is needed.
- A computer-controlled device is used in 3D printing to produce three-dimensional things out of a range of materials. To create the tool paths for 3D printers, utilize CAM software.
- Sheet metal fabrication: Sheet metal fabrication is the process of cutting, bending, and shaping sheet metal with the aid of computer-controlled tools. The tool paths for machines that fabricate sheet metal can be created using CAM software.
Benefits of using CAM in manufacturing processes and Automation
- CAM can assist in automating many of the manufacturing-related operations, which can result in greater productivity. By creating tool paths for CNC machines, for instance, CAM can free up human operators to concentrate on other activities.
- Improved quality: By creating more accurate and exact tool paths, CAM can assist ensure that products are manufactured to a high standard of quality. This may contribute to a decrease in faults and rework, which can help save both time and money.
- Cost savings: CAM can assist cut expenses by lowering energy use and wasteful material waste. CAM, for instance, can be used to improve tool paths by reducing the number of tool
- Reduced lead times: By automating the production process, CAM can help to minimize lead times. Manufacturers who have to provide their products to customers rapidly may find this useful.
- Improved traceability: CAM can assist producers in making their products’ tracability better. Manufacturers who have legal obligations or who need to trace the history of their products may find this useful.
- Enhanced departmental communication: CAM can aid in enhancing departmental communication within a manufacturing firm. For instance, the design and manufacturing teams can exchange CAD models via CAM.
- Increased innovation: By giving producers additional tools and capabilities, CAM can assist firms in innovating. For instance, CAM might be utilized to build new designs or
Ranking
There is no single ranking of CAM software in manufacturing processes and automation, as the best software for a particular application will depend on the specific needs of the manufacturer. However, some of the most popular and highly-rated CAM software programs include
- SolidWorks CAM: SolidWorks CAM is a CAM software program that is integrated with the SolidWorks CAD software. It offers a wide range of features for 2D and 3D machining, including tool path generation, simulation, and optimization.
- CAMWorks: CAMWorks is a CAM software program that is known for its ease of use and powerful features. It offers a wide range of features for 2D and 3D machining, including tool path generation, simulation, and optimization.
- Mastercam: Mastercam is a CAM software program that is known for its flexibility and customization. It offers a wide range of features for 2D and 3D machining, including tool path generation, simulation, and optimization.
Alumni Success Stories
- A University of Michigan College of Engineering alumnus founded his own business to design and produce robots. He created the software that operates the robots using the abilities he acquired in his CAM classes. His business is currently one of the top suppliers of industrial automation robots.
- CAM engineer employed by a significant automaker is a Massachusetts Institute of Technology (MIT) mechanical engineering alumnus. He makes use of his talents to create the CAM software that is employed in the production of auto parts. He is in charge of making sure the software is correct, effective, and up to company standards for quality.
- An engineering graduate from Stanford University works as a research scientist in a national laboratory. He creates innovative production procedures for high-performance materials by utilizing his CAM expertise. His work is advancing the creation of cutting-edge technologies like self-driving cars and surgical implants.
Conclusion
In conclusion, Computer-Aided Manufacturing (CAM) has revolutionized the manufacturing industry by enabling manufacturers to automate the manufacturing process and produce products with a high degree of accuracy and precision. CAM software and applications offer a wide range of benefits and advantages, including increased efficiency, improved accuracy, reduced costs, customization, faster time to market, and improved product quality.
FAQs
No, CAM can be used in manufacturing processes of any scale, from small shops to large factories. CAM software and applications are designed to be scalable and can be customized to meet the needs of any manufacturing operation.
CAM has changed the job market by reducing the need for manual labor in manufacturing. While some jobs may be automated or replaced by CAM systems, new job opportunities have emerged in areas such as CAM programming, machine maintenance, and quality control.
Working with CAM systems requires technical skills such as computer programming, engineering, and design. Additionally, individuals working with CAM systems must have a strong understanding of manufacturing processes, materials science, and machine operation.
