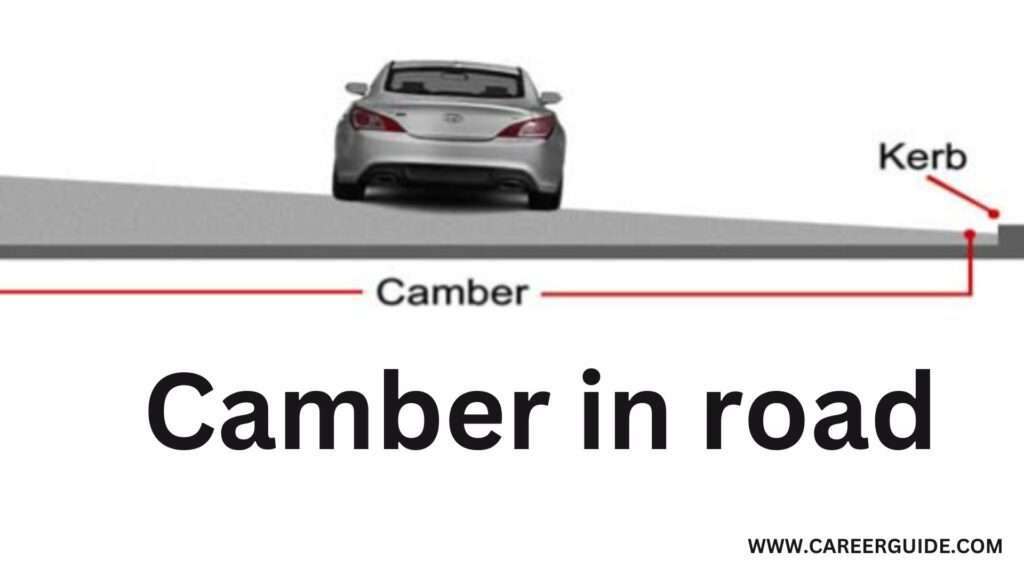

Camber in road layout refers back to the intentional transverse curvature of the street floor, sloping from the middle to the edges. This diffused incline is a critical function in avenue construction, mainly designed to facilitate green water drainage and beautify avenue safety. By directing rainwater farfar from the street`s middle, camber prevents water accumulation, that could result in floor damage, decreased traction, and improved hazard of accidents. Additionally, right camber design helps distribute automobile hundreds greater flippantly and extends the lifespan of avenue materials.
- Types of Camber In Road
- Objectives of Providing of Camber In Road
- Design Considerations for Camber In Road
- Construction of Camber In Road
- Maintenance of Camber In Road
- Camber in Different Road Types
- Effects of Camber on Vehicle Dynamics
- Camber vs. Cross Slope of Camber In Road
- Frequently Asked Question (FAQs)
Types of Camber In Road
Straight Camber
Uniform Slope: Straight camber capabilities a regular slope from the middle of the street to the edges, ensuing in a uniform cross-sectional shape. This layout is simple and smooth to implement.
Standard Use: It is normally utilized in roads in which a simple, powerful drainage answer is needed with out the want for complicated curvature. It is normal in lots of city and rural roadways.
Drainage Efficiency: Straight camber successfully directs water off the street surface, minimizing the hazard of puddling and capacity water-associated damage.
Parabolic Camber
Curved Slope: Parabolic camber contains a curve this is greater suggested on the middle of the street and steadily flattens closer to the edges, similar to a parabolic shape. This offers a greater sluggish transition for water runoff.
Enhanced Drainage: This sort of camber improves drainage performance with the aid of using growing the slope close to the middle, which allows in quicker and greater powerful water elimination from the street surface.
Comfort and Safety: Parabolic camber can beautify car consolation and protection with the aid of using decreasing the abruptness of the slope, main to smoother using situations and higher handling.
Composite Camber
Combination Design: Composite camber combines factors of each directly and parabolic camber, incorporating a directly phase close to the middle and a parabolic curve closer to the edges. This layout gives flexibility and adaptability.
Versatility: It may be tailor-made to fulfill unique drainage wishes and street situations, making it appropriate for numerous forms of roads, such as people with combined visitors volumes and environmental situations.
Optimized Performance: By integrating the advantages of each directly and parabolic camber, composite camber goals to offer an optimized answer for water drainage and street durability, balancing effectiveness with creation complexity.
Objectives of Providing of Camber In Road
Water Drainage
Prevents Water Accumulation: The number one goal of camber is to make certain that rainwater and different drinks go with the drift off the street floor in preference to pooling or stagnating. This facilitates save you water-associated problems which include hydroplaning and floor damage.
Reduces Slippery Conditions: Effective drainage via right camber reduces the danger of slippery situations on the street, that could cause injuries and decreased car control, in particular in negative weather.
Protects Road Surface: By directing water farfar from the street, camber facilitates shield the street floor from erosion and deterioration because of extended publicity to moisture.
Vehicle Safety
Enhances Traction: Proper camber layout facilitates keep higher traction through making sure that water does now no longer pool on the street floor. This reduces the danger of skidding and improves common car balance and handling.
Improves Driving Comfort: Camber contributes to smoother riding situations through stopping water from growing choppy or risky patches on the street, main to a greater cushty and more secure riding experience.
Reduces Risk of Accidents: By efficiently dealing with water runoff and retaining a solid street floor, camber reduces the chance of injuries because of bad street situations or lack of car control.
Road Longevity
Prevents Surface Damage: Proper camber layout facilitates amplify the existence of the street floor through stopping water damage, that could cause cracks, potholes, and different varieties of deterioration.
Minimizes Maintenance Costs: By lowering the danger of water-associated damage, camber facilitates decrease the frequency and price of street protection and repairs, contributing to greater price-powerful street management.
Enhances Durability: Camber contributes to the general sturdiness of the street through making sure that the floor stays intact and purposeful over time, assisting the street`s capacity to address site visitors masses and environmental stressors.
Design Considerations for Camber In Road
Factors Affecting Camber Design
Traffic Volume and Load: The extent and sort of site visitors the street will accommodate have an effect on the camber design. Heavier site visitors or better volumes may also require a steeper camber to successfully control water runoff and make certain avenue stability.
Climatic Conditions: Local climate conditions, such as rainfall depth and frequency, effect the desired camber design. Areas with heavy rainfall may also want a steeper camber to deal with elevated water runoff.
Road Type and Function: The motive of the street—whether or not city, rural, or highway—influences camber design. Urban roads may also have unique necessities in comparison to excessive-pace highways because of various site visitors styles and drainage needs.
Soil and Subgrade Conditions: The traits of the soil and subgrade under the street have an effect on camber design. Poorly tired subgrades may also require greater powerful camber to save you water from penetrating and unfavorable the street structure.
Pavement Material: The sort of pavement fabric used (asphalt or concrete) can have an effect on camber design. Different substances have various drainage houses and might require modifications in camber to optimize performance.
Standard Values for Camber
Urban Roads: For city roads, the everyday camber values variety from 1.five% to two% (1.five to two cm in line with meter), supplying ok drainage at the same time as making sure consolation and protection for mild site visitors.
Rural Roads: Rural roads regularly have barely decrease camber values, commonly among 1.five% and 2%, reflecting much less common and lighter site visitors in comparison to city roads.
Highways: High-pace highways typically require steeper camber values, starting from 2% to two.five%, to deal with better site visitors volumes and quicker water runoff successfully.
Road Shoulders: Camber values for avenue shoulders are commonly set round 2% to 3% to make certain powerful drainage and to house the extra runoff from cars pulling over.
Special Conditions: In regions with specific conditions, which include excessive rainfall or specialised site visitors styles, camber values can be adjusted past wellknown stages to satisfy particular drainage and protection necessities.
Construction of Camber In Road
Methods of Camber Construction
Manual Techniques: Traditional camber creation techniques contain guide leveling and grading the usage of hand equipment to obtain the preferred slope. This technique is regularly used for smaller initiatives or in regions wherein equipment get entry to is limited.
Grading Machines: Motor graders are usually used to create camber through adjusting the perspective of the street floor throughout grading. These machines offer precision and performance in attaining the precise slope.
Paver Finisher: In asphalt street creation, a paver finisher is hired to put and form the asphalt layer with the correct camber. The machine`s adjustable screed guarantees uniform camber throughout the street floor.
Formwork for Concrete Roads: For concrete roads, formwork is used to form the camber earlier than pouring the concrete. This approach includes putting in paperwork that manual the concrete into the preferred camber profile.
Compaction: After attaining the preliminary camber form, the floor is compacted the usage of rollers or vibratory compactors to make certain a solid and clean finish. Proper compaction allows hold the camber and forestalls destiny deformations.
Equipment Used in Camber Construction
Motor Graders: These flexible machines are critical for growing unique camber through adjusting the street floor’s perspective. They are prepared with a blade that may be angled to obtain the preferred slope.
Asphalt Pavers: Asphalt pavers lay down and form the asphalt material, incorporating camber into the floor throughout the paving process. The adjustable screed at the paver guarantees uniform camber throughout the street.
Compactors and Rollers: To solidify the camber and save you destiny deformation, compactors and rollers are used to compress the street floor. These machines assist obtain the preferred density and smoothness.
Laser Levels: Laser tiers offer unique measurements for camber creation through projecting a laser beam to make certain the street floor is graded accurately. They are critical for attaining the precise slope and alignment.
Concrete Formwork: For concrete pavements, formwork is used to mould the camber earlier than the concrete is poured. It consists of diverse equipment and substances to form and help the concrete throughout curing.
Maintenance of Camber In Road
Common Issues with Camber
Surface Deformation: Over time, the camber can turn out to be deformed because of site visitors hundreds and environmental factors. This deformation can result in choppy water runoff and probably risky using conditions.
Potholes and Cracks: Water infiltration and freeze-thaw cycles can motive potholes and cracks on the street floor, affecting the camber and ordinary avenue stability. These troubles frequently require set off restore to save you in addition damage.
Erosion: Heavy rainfall or bad drainage can erode the street floor, main to a lack of camber and expanded susceptibility to damage. Erosion can undermine the street`s structural integrity and decrease its effectiveness.
Depressions and Ruts: Over time, depressions and ruts can increase in regions of excessive site visitors, disrupting the supposed camber and inflicting water to pool. These irregularities can result in choppy put on and require corrective measures.
Material Wear and Tear: The substances utilized in building camber, along with asphalt or concrete, can degrade because of extended use and environmental exposure. This put on and tear can have an effect on the camber`s capability and appearance.
Techniques for Camber Maintenance
Regular Inspections: Conducting ordinary inspections of the street floor allows perceive early symptoms and symptoms of camber deformation or damage. These inspections are vital for well timed upkeep and restore.
Surface Repairs: Patching potholes and cracks directly allows repair the camber and save you in addition deterioration. Surface maintenance contain filling and resurfacing affected regions to hold right drainage and road integrity.
Regrading: If extensive camber troubles are detected, regrading can be necessary. This manner includes adjusting the street floor to repair the right camber slope and make sure powerful water runoff.
Erosion Control: Implementing erosion manipulate measures, along with drainage structures or shielding barriers, allows save you in addition erosion and hold the camber. Proper drainage control is important to maintaining the street floor.
Routine Maintenance: Regular upkeep practices, inclusive of sealing cracks and making use of floor treatments, assist lengthen the lifespan of the camber and make sure persevered effectiveness. Routine upkeep prevents minor troubles from escalating into foremost problems.
Camber in Different Road Types
Camber in Urban Roads
Traffic Management: Urban roads regularly enjoy excessive site visitors volumes and common stops. A slight camber, commonly starting from 1.5% to 2%, is used to stability powerful drainage with consolation for drivers, making sure easy automobile operation and minimizing skidding risks.
Pedestrian Considerations: Urban roads may also consist of sidewalks and intersections wherein camber desires to be cautiously designed to keep away from growing immoderate slopes that may be unsafe for pedestrians and cyclists. Camber transitions are designed to be easy and mild in those areas.
Drainage Efficiency: Due to the dense city environment, camber layout specializes in green water drainage to save you pooling on roads, that can cause localized flooding and street floor damage. Proper drainage structures are incorporated to supplement the camber.
Camber in Rural Roads
Lower Traffic Volume: Rural roads commonly deal with much less site visitors, making an allowance for camber values round 1.5% to 2%. This camber correctly manages water runoff whilst accommodating the decrease site visitors masses and speeds discovered in rural areas.
Maintenance Challenges: Rural roads may also face fewer protection resources, making it important to layout camber that minimizes the want for common repairs. Durable camber designs assist make sure durability notwithstanding restricted upkeep.
Natural Drainage: Rural roads regularly rely upon herbal drainage solutions, with camber designed to combine with the encompassing landscape. The camber facilitates direct water farfar from the street and into herbal drainage structures.
Camber in Highways
Higher Traffic Speeds: Highways, which accommodate excessive-pace site visitors, require steeper camber values, commonly among 2% and 2.5%, to make sure fast water runoff and keep street protection at better speeds.
Enhanced Durability: The camber layout for highways should accommodate heavy masses and common excessive-pace site visitors. This calls for strong creation strategies to make sure that the camber can resist the stresses and traces of motorway use.
Advanced Drainage Systems: Highways regularly function superior drainage structures, including floor and subsurface drains, to supplement the camber. This complete technique guarantees powerful water management, lowering the hazard of hydroplaning and street damage.
Effects of Camber on Vehicle Dynamics
Impact on Tire Wear
Even Wear Distribution: Proper camber layout guarantees that the automobile`s tires put on frivolously throughout the tread. This facilitates in retaining best traction and extends the lifespan of the tires through stopping choppy put on patterns.
Reduced Edge Wear: Excessive camber, both effective or negative, can motive immoderate put on at the internal or outer edges of the tires. Proper camber angles assist keep away from this issue, main to greater balanced tire usage.
Improved Longevity: With well-designed camber, tires enjoy much less pressure and deformation, which contributes to their standard durability and decreases the want for common replacements.
Enhanced Performance: Even tire put on on account of right camber contributes to higher automobile performance, inclusive of progressed handling, balance, and braking efficiency.
Cost Savings: Reduced choppy tire put on interprets into decrease upkeep charges for automobile owners, as they keep away from untimely tire replacements and associated expenses.
Influence on Steering and Handling
Steering Response: Proper camber angles beautify guidance reaction through making sure that the tires keep constant touch with the street surface. This improves the accuracy and responsiveness of the automobile`s guidance system.
Handling Stability: Correct camber facilitates in retaining automobile balance for the duration of cornering and high-velocity maneuvers. It reduces the threat of understeer or oversteer, contributing to more secure using dynamics.
Traction and Grip: Camber influences the touch patch of the tires with the street surface. Proper camber layout guarantees best traction and grip, that’s important for powerful acceleration, braking, and cornering.
Comfort and Ride Quality: Well-calibrated camber angles make a contribution to a smoother and greater snug trip through lowering the effect of street irregularities and minimizing vibrations transmitted to the automobile`s occupants.
Predictable Behavior: Proper camber settings make sure predictable and constant automobile behavior, improving driving force self belief and control, mainly in tough using situations or for the duration of unexpected maneuvers.
Camber vs. Cross Slope of Camber In Road
Differences Between Camber and Cross Slope
Definition: Camber refers back to the transverse curvature of a street floor, designed to facilitate water drainage through sloping from the middle closer to the edges. Cross slope, on the opposite hand, is a extra wellknown time period that describes the slope of the street floor from one facet to the opposite, which may also or won’t consist of curvature.
Purpose: The number one motive of camber is to decorate water drainage and save you water accumulation on the street floor. Cross slope, however, may be used for numerous motives which includes drainage, street balance, and facilitating car motion on curves or inclines.
Design Variations: Camber commonly has a selected geometric shape, including instantly or parabolic, designed for powerful water runoff. Cross slope is mostly a extra trustworthy slope with out precise curvature requirements, used to acquire a preferred gradient.
Impact on Vehicle Dynamics: Camber affects car dynamics through affecting tire put on and dealing with via its curvature. Cross slope affects car dynamics through affecting car balance and motion throughout the street floor, specifically on inclines and curves.
Applications of Camber and Cross Slope
Road Drainage: Camber is often utilized in street layout to direct rainwater farfar from the middle of the street, lowering the chance of water accumulation and keeping street protection. Cross slope is likewise used to make certain right drainage throughout the street floor, mainly in regions with out camber.
Vehicle Stability: Camber contributes to car balance and dealing with through imparting a managed slope that improves water runoff and decreases skid risks. Cross slope can useful resource balance on inclines and curves through imparting a constant gradient that helps car traction and control.
Road Construction: In street construction, camber is designed to cope with precise drainage wishes and enhance floor longevity. Cross slope is frequently used to create a sluggish incline or decline throughout the street floor, making sure that water flows away effectively and that the street floor stays stable.
Highway Design: For highways, camber is used to decorate water drainage and make certain street protection at excessive speeds. Cross slope is implemented to hold a constant gradient for drainage purposes, specifically on lengthy stretches of street wherein camber on my own won’t be sufficient.
Railway Tracks: In railway layout, go slope is used to manipulate water drainage alongside tracks, at the same time as camber is much less usually implemented. The go slope guarantees that water does now no longer gather at the song bed, keeping song balance and performance.
Freqently Asked Questions (FAQs)
Q1. What is camber in road design?
Camber is the transverse curvature of a road surface, sloping from the center towards the edges to facilitate water drainage and enhance road safety.
Q2. Why is camber important?
Camber prevents water accumulation on the road, reduces the risk of accidents, and extends the road’s lifespan by minimizing surface damage.
Q3. What are the different types of camber?
The main types are straight camber, which has a uniform slope; parabolic camber, which features a curved slope that flattens towards the edges; and composite camber, which combines elements of both straight and parabolic designs.
Q4. What is the difference between camber and cross slope?
Camber specifically refers to the curvature designed for drainage, while cross slope is a more general term describing any slope across a road or surface, including but not limited to camber.
Q5. How does camber affect vehicle dynamics?
Camber impacts tire wear by ensuring even distribution, affects steering and handling by maintaining proper contact with the road, and contributes to overall vehicle stability.
