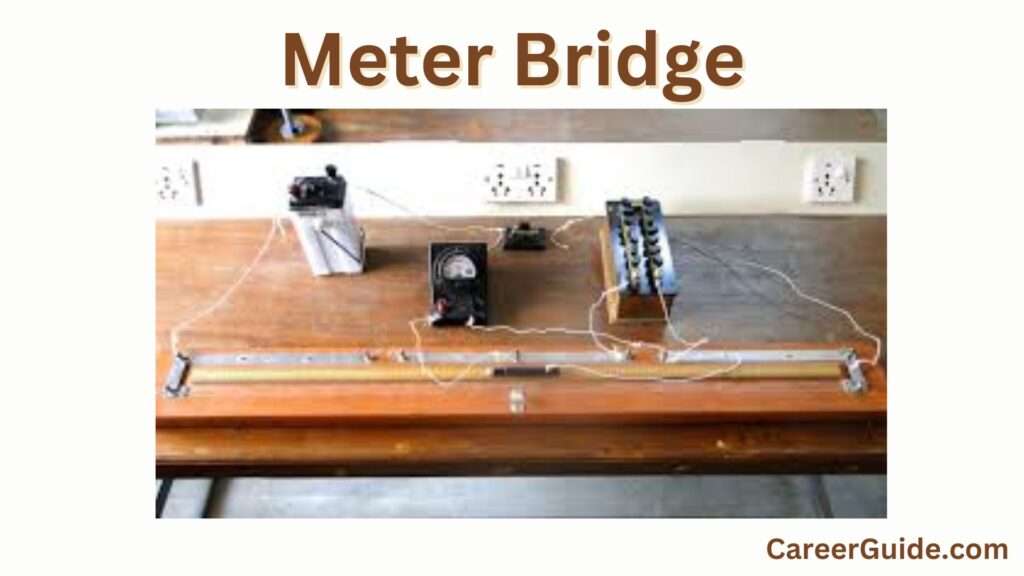

Components of a Meter Bridge
The meter bridge is a essential device for measuring electric resistance and is predicated on numerous key additives to characteristic accurately. Understanding those additives allows in greedy the operation and programs of the meter bridge.
Bridge Wire
The bridge twine is the critical factor of the meter bridge, usually crafted from a fabric like constantan that has a uniform resistivity. This twine is precisely one meter lengthy and is set up on a base, frequently manufactured from wooden or metal. The twine is essential due to the fact its uniformity and specific duration make certain correct measurements. The bridge twine is split into sections through a sliding contact, which lets in for first-class changes to stability the bridge. This stability is important for measuring unknown resistances.
Galvanometer
The galvanometer is a touchy tool used to come across the presence of present day and degree its magnitude. In a meter bridge setup, the galvanometer is hooked up throughout the bridge twine to come across the factor of stability. When the bridge is efficaciously balanced, the galvanometer indicates 0 deflection, indicating no present day flows thru it. This null factor is used to decide the stability of the bridge and, consequently, the price of the unknown resistance.
Standard Resistance
Standard resistances are regarded, specific resistors utilized in one arm of the meter bridge. These resistors are cautiously calibrated and feature regarded resistance values, which function references for comparison. By adjusting the bridge to gain a stability, the price of the unknown resistance may be calculated the use of the regarded popular resistances. The accuracy of the size relies upon at the precision of those popular resistors.
Unknown Resistance
The unknown resistance is the resistor whose price wishes to be measured. It is hooked up to one of the hands of the meter bridge, and its price is decided through balancing the bridge. By evaluating the unknown resistance with the regarded popular resistances and adjusting the bridge twine, the precise price of the unknown resistor may be calculated. The size is predicated on attaining a specific stability withinside the bridge circuit.
In summary, the meter bridge`s additives paintings collectively to offer correct resistance measurements. The bridge twine, galvanometer, popular resistances, and unknown resistance every play a crucial position in making sure the tool operates efficaciously and offers dependable results.
Principle of Operation
The meter bridge operates at the precept of a balanced bridge, that is derived from the Wheatstone bridge concept. Understanding those ideas is vital for greedy how the meter bridge capabilities and measures resistance.
Concept of Balanced Bridge
A meter bridge is primarily based totally at the precept of a balanced bridge circuit, in which the bridge reaches a nation of equilibrium. When the bridge is balanced, the ratio of resistances in a single arm is identical to the ratio of resistances withinside the different arm. This stability is carried out whilst there’s no modern flowing thru the galvanometer related throughout the bridge twine. In this nation, the bridge twine`s sections are in a specific ratio, taking into account the correct dedication of the unknown resistance.
Wheatstone Bridge Theory
The meter bridge operates at the Wheatstone bridge precept, that is used to degree an unknown resistance via way of means of balancing legs of a bridge circuit. The Wheatstone bridge includes 4 resistors organized in a diamond shape, with a galvanometer related among contrary factors and a energy supply implemented throughout the opposite factors. When the bridge is balanced, the ratio of the resistances in a single leg is identical to the ratio withinside the different leg. This precept is implemented withinside the meter bridge, in which the regarded and unknown resistances are in comparison to reap stability and decide the unknown price.
Electrical Balance
Electrical stability in a meter bridge is carried out whilst the bridge twine is split into sections via way of means of a sliding touch, and the galvanometer suggests no deflection. This suggests that the bridge is in a nation of equilibrium, in which the ratios of the resistances on each facets of the bridge are identical. At this point, the duration of the bridge twine on every facet of the sliding touch corresponds to the ratio of the resistances. By measuring those lengths and understanding the same old resistances, the price of the unknown resistance may be calculated the usage of the formulation derived from the balanced bridge condition.
In summary, the meter bridge is predicated at the Wheatstone bridge concept to degree unknown resistances. The precept of a balanced bridge guarantees that correct measurements may be received whilst the electric stability is carried out, with the ratios of resistances withinside the circuit being identical.
Construction of a Meter Bridge
The production of a meter bridge includes numerous key steps, together with choosing suitable substances, designing and assembling the additives, and calibrating the tool to make sure correct measurements.
Materials Used
The number one substances utilized in building a meter bridge include:
Bridge Wire: A one-meter-lengthy cord crafted from a fabric with uniform resistivity, including constantan. This cord is vital for retaining constant resistance and making sure correct measurements.
Base: Typically fabricated from timber or metal, the bottom helps the bridge cord and offers stability. It frequently consists of a slot or mounting location for the bridge cord and different additives.
Sliding Contacts: These are adjustable contacts crafted from conductive substances that could slide alongside the bridge cord to assist gain the stability factor.
Galvanometer: A touchy tool used to stumble on modern-day and degree the stability factor. It is attached throughout the bridge cord to suggest whilst the bridge is balanced.
Standard and Unknown Resistors: Precision resistors are used for calibration and size purposes. These resistors should be correct and strong to make sure dependable results.
Design and Assembly
The layout of a meter bridge includes numerous important additives organized to facilitate correct resistance measurements:
Mounting the Bridge Wire: The bridge cord is constant alongside a one-meter period on the bottom, with provision for sliding contacts. The cord should be directly and uniform to make sure correct measurements.
Installing Sliding Contacts: Sliding contacts are located on both aspect of the bridge cord. These contacts permit for adjustment and fine-tuning of the bridge to gain a stability. They ought to be crafted from conductive substances to make sure right electric connection.
Galvanometer Placement: The galvanometer is attached throughout the bridge cord at a factor wherein it’s going to stumble on any imbalance. Its placement is vital for as it should be figuring out the null factor wherein no modern-day flows thru it.
Connecting Resistors: The trendy resistors and the unknown resistor are related to the meter bridge at distinct points. The association usually includes connecting one trendy resistor and the unknown resistor in separate hands of the bridge circuit.
Calibration
Calibration is vital to make sure that the meter bridge offers correct measurements:
Initial Calibration: Before use, the meter bridge ought to be calibrated the usage of recognised trendy resistors. This includes adjusting the sliding contacts and verifying that the bridge balances effectively with the recognised resistors.
Checking Zero Deflection: Ensure that the galvanometer indicates 0 deflection whilst the bridge is balanced. If not, changes should be made to the sliding contacts or the location of the resistors.
Periodic Calibration: Regular calibration assessments are essential to account for any glide withinside the bridge cord`s resistance or modifications withinside the trendy resistors. This guarantees persevered accuracy over time.
In summary, building a meter bridge calls for cautious choice of substances, specific layout and assembly, and thorough calibration to make sure dependable and correct resistance measurements.
Working Principle
The meter bridge operates at the essential precept of electrical stability, which permits for the correct size of unknown resistances. This technique is rooted withinside the Wheatstone bridge theory, which offers the framework for information the meter bridge`s operation.
Theory of Measurement
The meter bridge makes use of the Wheatstone bridge precept to degree an unknown resistance with the aid of using accomplishing a stability among legs of the bridge circuit. The fundamental idea is that once a bridge circuit is in equilibrium, the ratios of the resistances withinside the fingers of the bridge are equal.
Procedure for Finding Unknown Resistance
To locate the unknown resistance the use of a meter bridge, comply with those steps:
Setup: Place the meter bridge on a strong floor and join the recognized trendy resistors and the unknown resistor to the exact factors at the bridge.
Adjust Sliding Contacts: Position the sliding contacts at the bridge twine to make preliminary adjustments. Ensure the galvanometer is attached throughout the bridge twine.
Balance the Bridge: Adjust the sliding touch till the galvanometer indicates 0 deflection, indicating that the bridge is balanced. This manner no contemporary flows via the galvanometer, signifying a balanced state.
Record Measurements: Measure the lengths of the bridge twine on both facet of the sliding touch. These lengths correspond to the ratio of resistances withinside the bridge.
Calculate Unknown Resistance: Use the measured lengths and the recognized trendy resistances to calculate the unknown resistance the use of the stability circumstance formula.
Role of Null Point
The null factor is the circumstance completed while the meter bridge is balanced, and the galvanometer indicates 0 deflection. At this factor, the bridge is in equilibrium, that means the ratios of the resistances withinside the fingers of the bridge are equal. The null factor is vital as it means that the size is correct and reliable. Any deviation from the null factor suggests an imbalance, which calls for adjustment. The specific identity of the null factor permits for the correct dedication of the unknown resistance, making sure the accuracy of the size.
In summary, the running precept of the meter bridge entails accomplishing electric stability the use of the Wheatstone bridge theory. By following the method to locate the unknown resistance and correctly figuring out the null factor, the meter bridge offers specific measurements of resistances.
Experimental Procedure
The experimental technique for the use of a meter bridge to degree an unknown resistance entails putting in place the device, acting the dimension, and recording observations accurately. Here`s a step-with the aid of using-step guide:
Setting Up the Meter Bridge
Place the Meter Bridge: Position the meter bridge on a stable, flat floor to make sure correct readings. Make positive the bridge twine is directly and securely established at the base.
Connect the Galvanometer: Attach the galvanometer throughout the bridge twine on the unique points. Ensure that the galvanometer terminals are related nicely to keep away from dimension mistakes.
Install the Standard and Unknown Resistors: Connect one wellknown resistor to one of the bridge`s fingers and the unknown resistor to the other arm. Ensure that each one connections are stable and that there is right electric touch.
Check the Sliding Contacts: Position the sliding contacts at the bridge twine. These contacts can be used to regulate the bridge to acquire balance. Ensure they’re easy and nicely aligned with the bridge twine.
Steps to Perform the Experiment
Initial Adjustment: Begin with the aid of using adjusting the sliding contacts to their preliminary positions. This is normally performed with the aid of using putting them at same distances from the ends of the bridge twine.
Balancing the Bridge: Slowly flow the sliding contacts alongside the bridge twine till you discover a role wherein the galvanometer suggests 0 deflection. This shows that the bridge is balanced, and no modern-day flows thru the galvanometer.
Record the Balancing Point: Once the bridge is balanced, word the location of the sliding contacts. Measure the lengths of the bridge twine on both aspect of the sliding touch the use of a ruler or calibrated scale.
Repeat the Measurement: For accuracy, repeat the balancing procedure some instances and take common readings if necessary. This enables decrease any mistakes and guarantees extra dependable effects.
Observations and Recordings
Record Lengths: Document the lengths of the bridge twine on each facets of the sliding touch. These lengths are crucial for calculating the unknown resistance.
Record Known Resistances: Note the values of the same old resistors used withinside the experiment. Accurate documentation of those values is crucial for calculating the unknown resistance correctly.
Analyze the Results: Compare the calculated unknown resistance with anticipated values or take a look at for consistency with different measurements. Document any discrepancies or anomalies and bear in mind capacity reassets of error.
By following those steps, you make sure that the meter bridge is installation correctly, the measurements are executed accurately, and the effects are dependable.
Applications of Meter Bridge
The meter bridge is a flexible device with diverse programs in each academic and realistic settings. Its capacity to degree electric resistance with excessive precision makes it treasured for one of a kind uses.
Educational Use
In academic settings, the meter bridge is broadly used to train essential ideas of electrical resistance and bridge circuits. It affords a hands-on technique to knowledge the Wheatstone bridge principle, permitting college students to peer concept in action. The device is utilized in laboratory experiments to illustrate how resistance may be measured and compared, assisting college students draw close the connection among resistors, balance, and electric circuits. The simplicity and effectiveness of the meter bridge make it an crucial device in physics and engineering education.
Practical Electrical Measurements
Beyond the classroom, the meter bridge is applied in realistic electric measurements to decide unknown resistances accurately. It is regularly hired in electric workshops and checking out laboratories wherein specific resistance measurements are required. Technicians and engineers use the meter bridge for best control, maintenance, and troubleshooting of electrical components. Its capacity to offer correct and dependable resistance measurements makes it a useful device in realistic electric programs.
Calibration of Instruments
The meter bridge is likewise used for the calibration of different electric size devices. By supplying specific resistance values, it serves as a reference for checking and adjusting the accuracy of multimeters, ohmmeters, and different resistance-measuring devices. This guarantees that those devices keep their accuracy through the years and affords self assurance of their readings. The meter bridge`s function in calibration enables uphold requirements and enhance the reliability of electrical measurements in diverse industries.
In summary, the meter bridge unearths huge programs in academic settings for coaching and experimentation, in realistic electric measurements for accuracy and best control, and withinside the calibration of different devices to make sure specific readings. Its versatility and precision make it a treasured device throughout a couple of domains.
Advantages and Limitations
The meter bridge is a extensively used tool with numerous advantages and a few limitations. Understanding those factors allows in comparing its effectiveness and evaluating it with different dimension gadgets.
Benefits of Using a Meter Bridge
High Accuracy
The meter bridge offers correct measurements of electrical resistance with the aid of using the usage of the Wheatstone bridge principle. Its cappotential to come across minute variations in resistance makes it a dependable device for unique measurements.
Educational Value
The meter bridge is an exquisite academic device for demonstrating essential standards in electric engineering and physics. It allows college students recognize the ideas of resistance dimension and bridge circuits thru hands-on experimentation.
Simple and Cost-Effective
The layout of the meter bridge is tremendously easy and cost-powerful as compared to extra superior instruments. This makes it reachable for academic establishments and small laboratories.
Calibration of Instruments
The meter bridge may be used to calibrate different resistance-measuring gadgets, making sure accuracy and reliability throughout numerous instruments. This is especially beneficial in preserving the requirements of electrical dimension equipment.
Versatility
It can degree a extensive variety of resistances with right precision. Its versatility makes it appropriate for numerous applications, from academic experiments to realistic electric measurements.
Common Limitations and Issues
Length of the Bridge Wire
The accuracy of the meter bridge may be stricken by the period and uniformity of the bridge twine. Any imperfections or versions withinside the twine can result in dimension errors.
Temperature Sensitivity
The resistance of the bridge twine and resistors can range with temperature. This temperature dependence can have an effect on the accuracy of the measurements, specifically in environments with fluctuating temperatures.
Complex Setup for High Accuracy
Achieving excessive accuracy with a meter bridge calls for cautious setup and calibration. It can be hard to stability the bridge flawlessly and keep correct measurements over time.
Limited to Resistance Measurement
The meter bridge is mainly designed for measuring resistance and does now no longer without delay degree different electric homes including voltage or current. This limits its software to resistance-associated tasks.
Manual Adjustment
Balancing the meter bridge calls for guide adjustment of the sliding contacts, which may be time-eating and susceptible to human error. Modern virtual dimension gadgets provide computerized and extra honest measurements.
Comparison with Other Measurement Devices
Digital Multimeters
Digital multimeters (DMMs) provide computerized, easy-to-study measurements of resistance, voltage, and current. They are extra flexible and faster to apply as compared to the guide setup required for a meter bridge. However, they’ll lack the identical degree of precision for particular resistance measurements.
Ohmmeters
Ohmmeters are designed mainly for measuring resistance and frequently offer direct readings with excessive accuracy. They may be extra handy for brief measurements however do now no longer provide the identical academic price or versatility as a meter bridge.
Kelvin Bridge
The Kelvin bridge is a sophisticated model of the Wheatstone bridge used for measuring very low resistances with excessive precision. It is extra complicated and costly than a meter bridge however gives advanced accuracy for low-resistance measurements.
Troubleshooting Meter Bridge Issues
Common Problems and Solutions
Galvanometer Shows Deflection Even When Adjusted
Problem: If the galvanometer suggests deflection no matter adjusting the sliding contacts, it shows that the bridge isn’t always balanced.
Solution:
Ensure that the bridge cord is uniformly aligned and loose from any kinks or bends.
Check the connections and make sure that the galvanometer and resistors are nicely connected.
Verify that the sliding contacts are easy and making exact touch with the bridge cord.
Inconsistent Readings
Problem: If measurements are inconsistent or range significantly, it may be because of misguided resistor values or risky bridge cord resistance.
Solution:
Confirm that the same old resistors are as it should be calibrated and inside their distinct tolerance.
Inspect the bridge cord for uniformity and make sure that it isn’t always broken or corroded.
Recalibrate the meter bridge through checking and adjusting the same old resistors.
Difficulty Achieving Balance
Problem: Difficulty in accomplishing a stability or locating a null factor may also suggest problems with the bridge setup.
Solution:
Recheck the setup to make sure all additives are successfully located and connected.
Ensure that the bridge cord is stretched tightly and uniformly alongside the meter bridge.
Try adjusting the sliding contacts greater slowly and exactly to find the stability factor.
Incorrect Measurements
Problem: If the calculated resistance values are incorrect, it may be because of size mistakes or defective additives.
Solution:
Verify that the measurements of the bridge cord lengths are correct the usage of a dependable ruler or calibrated scale.
Check the situation of the resistors and update any that can be faulty or out of tolerance.
Review the calculation procedure and make sure that the formulation used for resistance calculation is carried out successfully.
Maintenance Tips
Regular Cleaning
Keep the meter bridge easy through often dusting the bridge cord and sliding contacts. Use a smooth fabric and keep away from the usage of abrasive substances that might harm the additives.
Inspect Connections
Periodically look into all electric connections for symptoms and symptoms of damage, corrosion, or unfastened fittings. Ensure that every one connections are steady and loose from oxidation.
Store Properly
Store the meter bridge in a dry and dust-loose surroundings to save you harm to the bridge cord and different additives. Avoid exposing the tool to intense temperatures or humidity.
Check for Wear
Regularly take a look at the situation of the bridge cord and sliding contacts. Replace any components that display symptoms and symptoms of damage or harm to hold the accuracy of the meter bridge.
Ensuring Accurate Measurements
Calibrate Before Use
Always calibrate the meter bridge the usage of acknowledged preferred resistors earlier than beginning measurements. This guarantees that the device is as it should be adjusted and geared up for use.
Use Precise Measuring Tools
Employ unique measuring equipment to decide the lengths of the bridge cord segments. Accurate duration measurements are essential for unique resistance calculations.
Frequently Asked Questions (FAQs)
1. What is a meter bridge?
A meter bridge is an instrument used to measure unknown resistances by balancing a bridge circuit, based on the Wheatstone bridge principle. It consists of a one-meter-long wire and components like a galvanometer, known resistors, and an unknown resistor.
2. How does a meter bridge work?
It operates by finding a balance point where no current flows through the galvanometer. By adjusting the sliding contacts until the galvanometer reads zero, the ratio of known to unknown resistances is used to calculate the unknown resistance.
3. What are the main components of a meter bridge?
The main components are the bridge wire, galvanometer, standard resistors, unknown resistor, and sliding contacts.
4. How do I set up a meter bridge for an experiment?
Place the meter bridge on a stable surface, connect the galvanometer, attach the known and unknown resistors, and adjust the sliding contacts to find the balance point where the galvanometer shows zero deflection.
5. What should I do if the galvanometer shows deflection even when adjusted?
Check if the bridge wire is straight and undamaged, ensure all connections are secure, and verify that the sliding contacts are clean and making good contact.
